Pedestal feet for deck or raised floor construction
PACK OF 10
When building a deck, the construction of the sub-structure can be very time consuming, especially if the suitable installation surfaces (e.g. concrete slabs) need to be adjusted for the deck joist supports.
✓ The double thread allows for millimetre-accurate height adjustments by continuously turning to the right or left.
✓ Easy Floor Joist support with swivel head.
✓ Approximately 4 - 5 pedestals are required per square metre (depends on the type and dimensions of the sub-structure and the decking boards).
With any elevated deck installation using the Deck Pedestal system follow basic load requirements.
the feet in the correct arrangements on your existing rigid floor to allow for
the joists or bearers for the deck structure above to be placed. Usually no more then 600mm apart.2) Screw
floor joist stopper to the aluminium or wood joist structure
3) Adjust the height by screwing the adjusting unit to
make structure level.4) The
bearing plate with the bracket can be freely rotated to hold your joists5) Anchor
the feet to your rigid floor.
Adjustable Pedestals provide a clever solution for architects and builders when designing and constructing raised flooring. They can be used with decking to create raised floors on balconies, roof gardens, and temporary floors.
Adjustable Pedestals are perfect for concealing services under the raised flooring, whilst offering easy access for maintenance of waterproof membranes.
In Australia for the DIY market, they are extensively used for laying decking over existing surfaces such as old concrete around your home.
The price listed is for the pedestal only. There are no screws or anchors provided.
Deck pedestals allow you to create raised timber and composite deck floors on balconies, podiums and roof tops.
Deck Pedestals can be used around pools and to raise old patios to cover unsightly Pebblecrete or uneven concrete while providing drainage.
Height adjustable in this range:

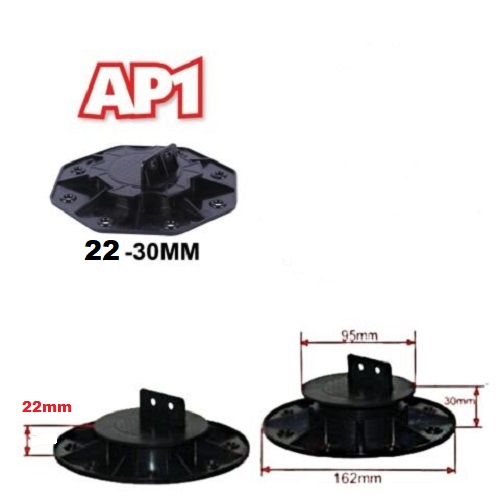

AP1 = 18 - 30mm small feet:
AP2 = 30 - 60mm mini feet:
AP3 = 60 - 140mm
AP4 = 140 - 220mm
Benefits of using Pedestal Feet
Easy leveling (using rubber packers)
Resistant to UV
Weather and heat
Allows drainage and air ventilation
Recycled Plastic Product
AP4 = 800 kgs
AP3 = 600kgs
AP2 = 400kgs
AP1 = 200kgs
With any construction in Australia seek professional advice with your engineer or with Australia Standards and use a licensed builder for all jobs that require certification. We are a supplier of pedestal feet and not an engineer.
